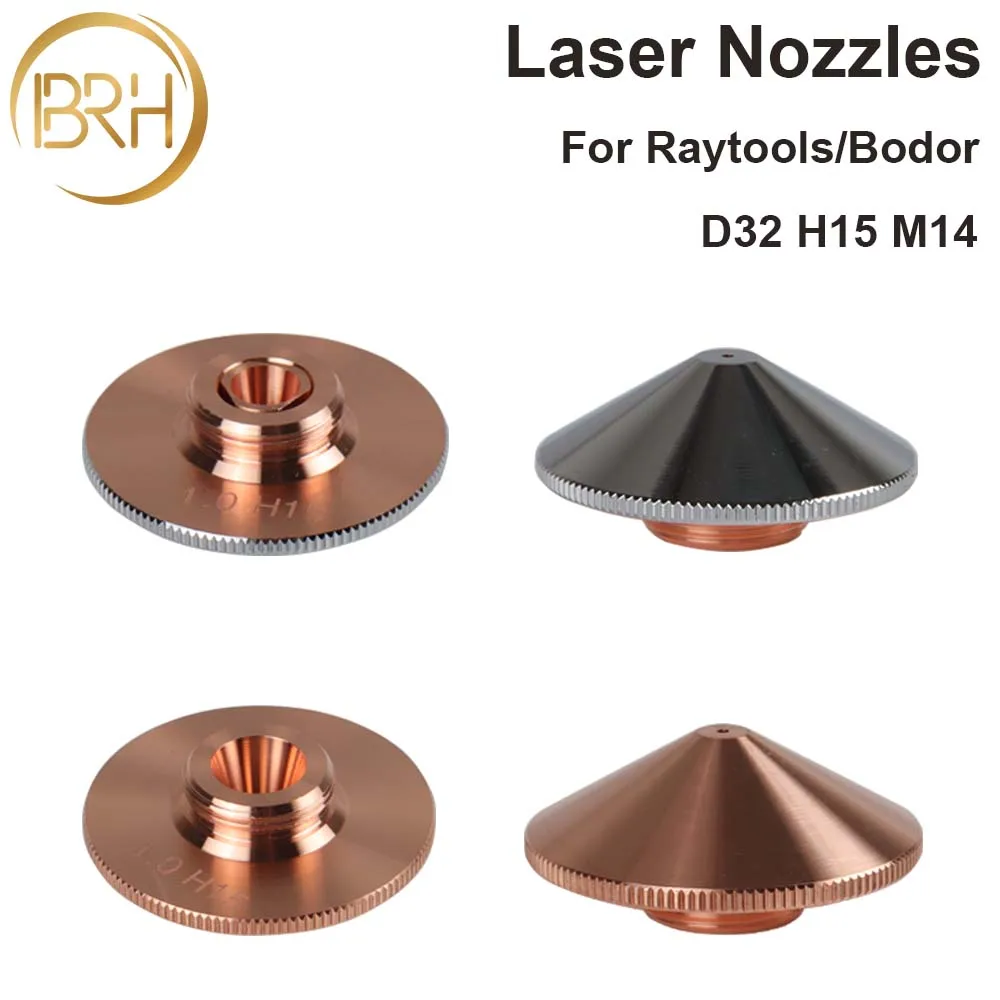

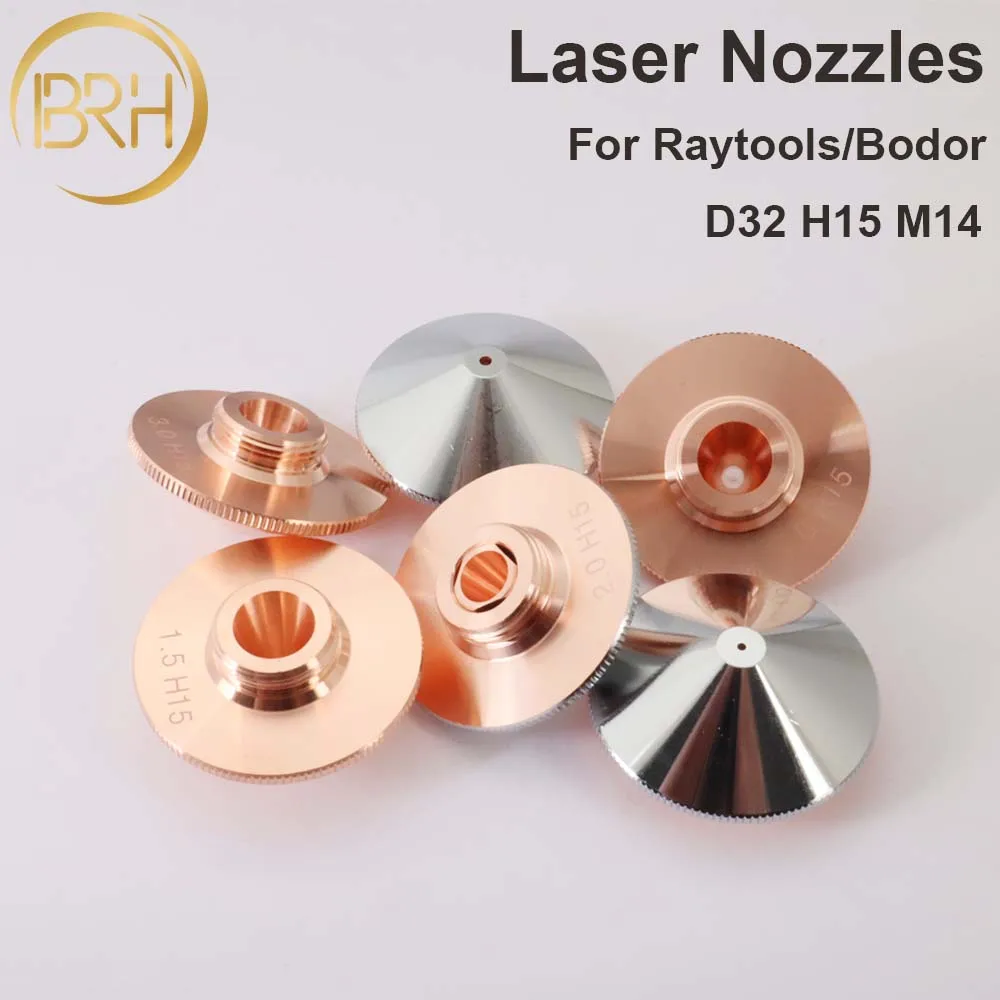

Keep your fiber laser cutting clean and accurate with these replacement laser nozzles. Made to fit Raytools cutting heads and Bodor fiber laser cutting machines, each nozzle helps direct the assist gas and laser beam for a consistent, precise cut.
Key Features
- Compatible with Raytools fiber laser cutting heads and Bodor machines (BT240, BM110, BM111)

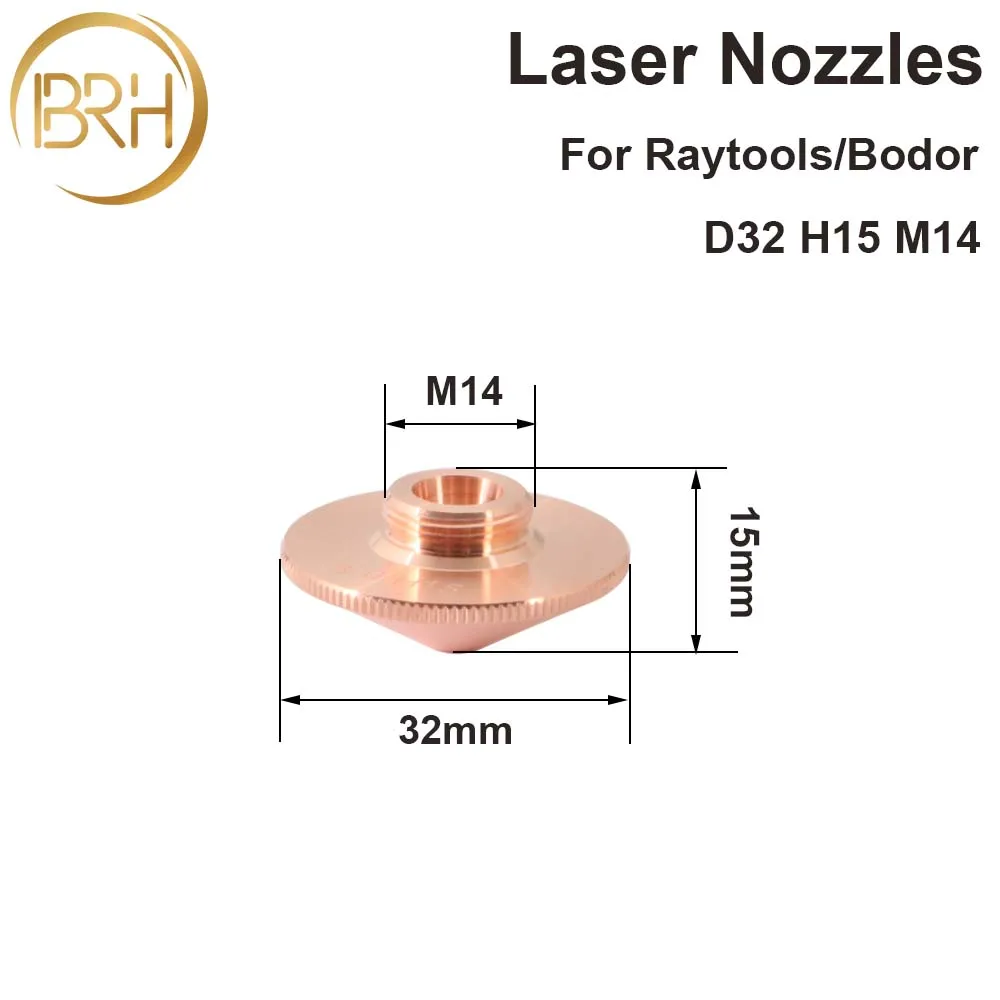

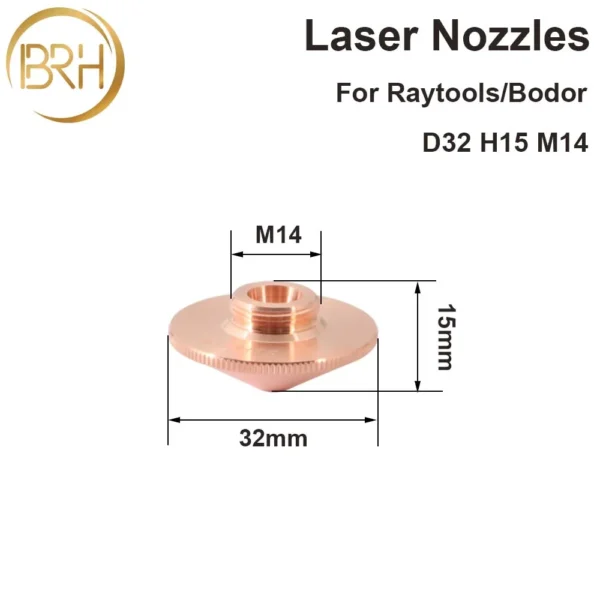

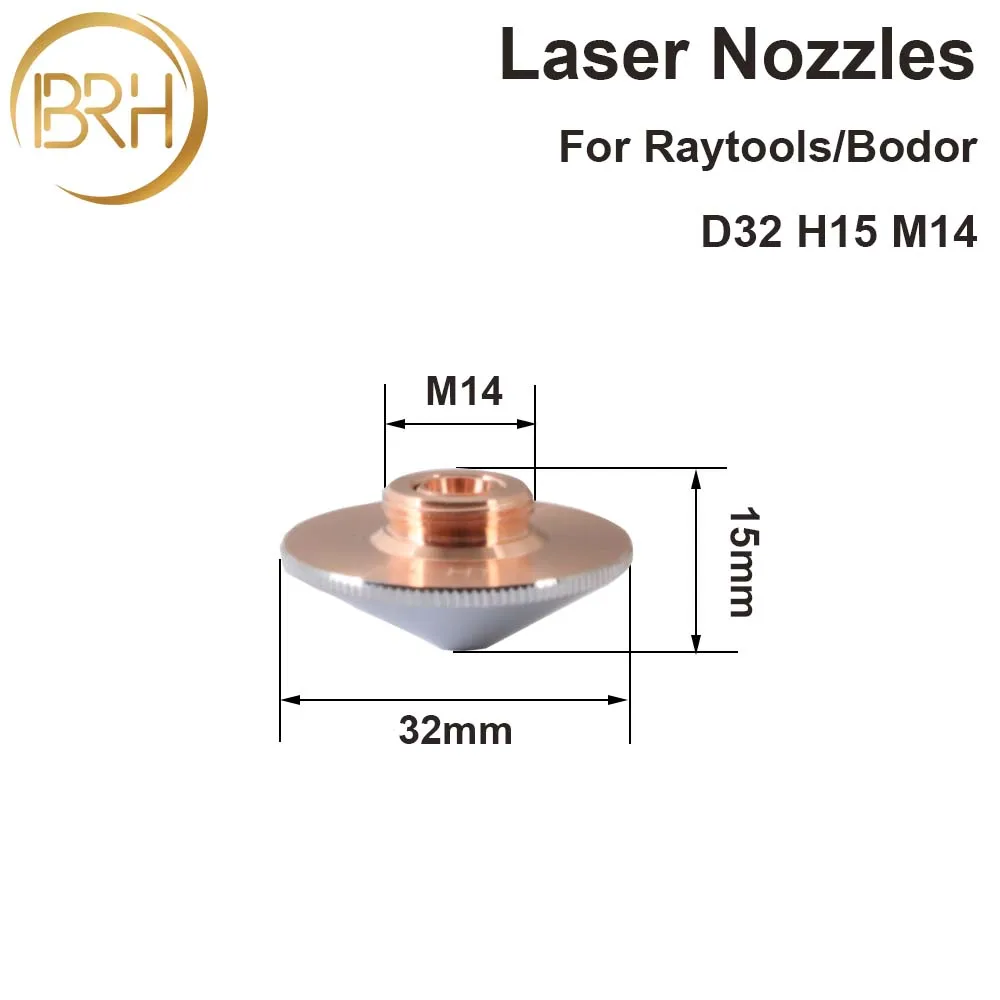

- 32mm diameter, M14 thread, 15mm height (D32 H15)

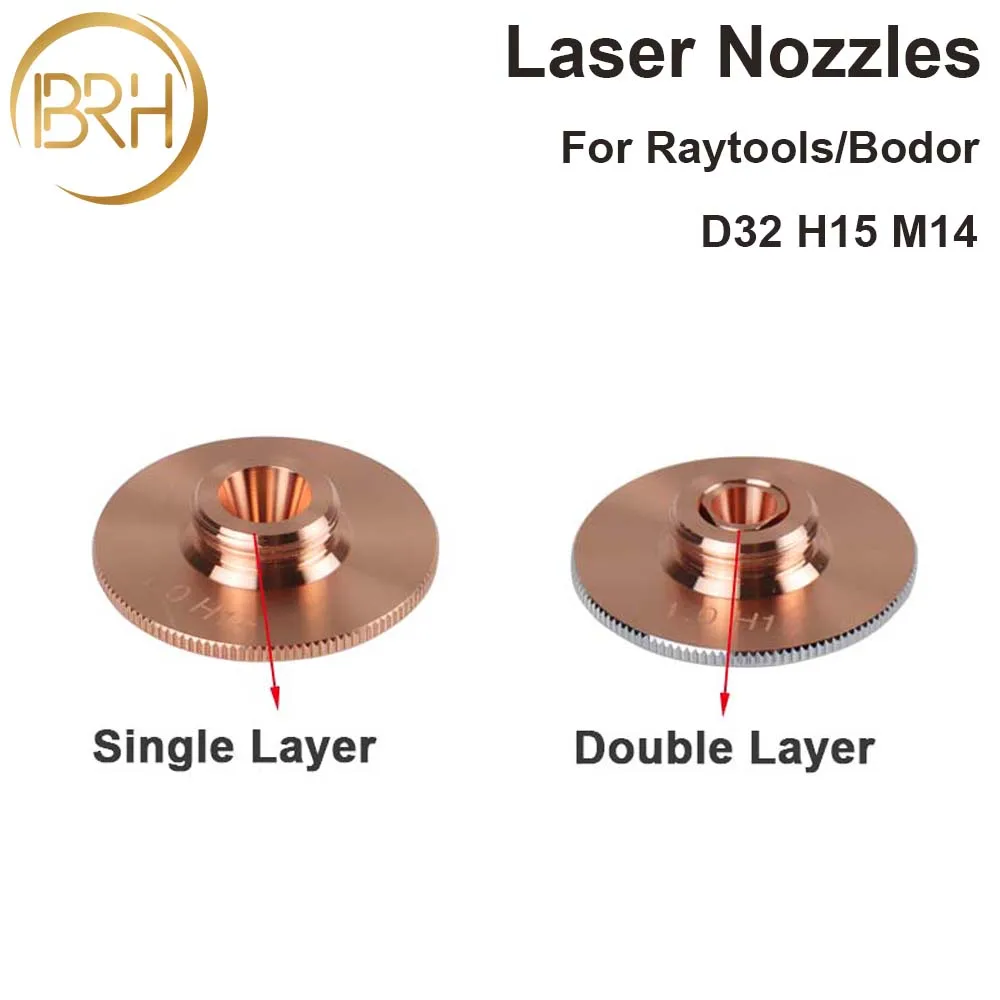

- Single layer: commonly used with nitrogen or air for cutting stainless steel and aluminium
- Double layer: commonly used with oxygen for cutting carbon steel
- Choose from 12 calibers between 0.8mm and 5.0mm to suit your material thickness
- Precision-machined brass for good heat resistance and a long working life
Specifications
- Model: Raytools/Bodor Nozzle D32 H15
- Diameter: 32mm
- Thread: M14
- Type: Single Layer or Double Layer
- Caliber: 0.8, 1.0, 1.2, 1.5, 1.8, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0mm
Package Includes
1 x Laser Nozzle (in your selected type and caliber)
Please check your cutting head model and thread size before ordering. Switch off and let the cutting head cool before changing nozzles.
